하만(Harman) 세미콘 아카데미 46일차 - Verilog HDL 설계(Serial to Parallel, Parallel to Serial 변환)

[2024.05.17.금] 인천인력개발원 하만 세미콘 아카데미

---

실습 1: Parallel to Serial / Serial to Parallel 변환기

---

1. my_sp 프로젝트 생성

2. my_sp.v 파일을 Create Design Sources로 생성한 뒤 코드 작성(my_p2s와 my_s2p 모듈 두 개 사용)

`timescale 1ns / 1ps

/********************************************
parallel to serial
********************************************/
module my_p2s (input RST, CLK, START,
               input [7:0] DIN,
               output SOF,
               output DOUT
       );
reg [2:0] bit_cnt;

assign DOUT = DIN[bit_cnt];
assign SOF = bit_cnt == 3'd0;

always @(posedge CLK)
begin
    if(RST)
        bit_cnt <= 3'd7;
    else if(START)
        bit_cnt <= 3'd0;
    else if(bit_cnt < 3'd7)
        bit_cnt <= bit_cnt + 1;
end
endmodule

/********************************************
serial to parallel
********************************************/
module my_s2p (input RST, CLK, SOF,
               input DIN,
               output reg [7:0] DOUT
       );
reg [2:0]   bit_cnt;
reg         data_reg;

always @(posedge CLK)
begin
    if(RST) begin
        DOUT <= 8'd0;
        data_reg <= 1'b0;
    end else begin
        DOUT[bit_cnt] <= data_reg;
        data_reg <= DIN;
    end
end

always @(posedge CLK)
begin
    if(RST)
        bit_cnt <= 3'd7;
    else if(SOF)
        bit_cnt <= 3'd0;
    else if(bit_cnt < 3'd7)
        bit_cnt <= bit_cnt + 1;
end

endmodule



3. 테스트벤치를 위해 Create Simulation Sources - my_sp_tb.v파일 생성 후 코드 작성

`timescale 1ns / 1ps

module my_sp_tb( );

parameter   CLK_PD = 8.0;
reg         rst, clk, start;
reg [7:0]   din;
wire        sof;
wire        p2s_dout;
wire [7:0]  s2p_dout;

my_p2s uut_0 (.RST (rst), .CLK (clk), .START (start),
               .DIN (din),.SOF (sof),.DOUT (p2s_dout) );
my_s2p uut_1 (.RST(rst), .CLK(clk), .SOF(sof),
                .DIN (p2s_dout), .DOUT (s2p_dout) );

initial begin
    rst = 1'b1;
    #(CLK_PD*10);
    rst = 1'b0;
end

initial clk = 1'b0;
always #(CLK_PD/2) clk = ~clk;

initial begin
    start = 1'b0;
    din = 8'd0;
    wait (rst == 1'b0);
    #(CLK_PD*5);
    start = 1'b1;
    din = 8'h47;
    #(CLK_PD);
    start = 1'b0;
    repeat (20) @(posedge clk);
    start = 1'b1;
    din = 8'hb8;
    #(CLK_PD);
    start = 1'b0;
    #100;
    $finish;
end

endmodule

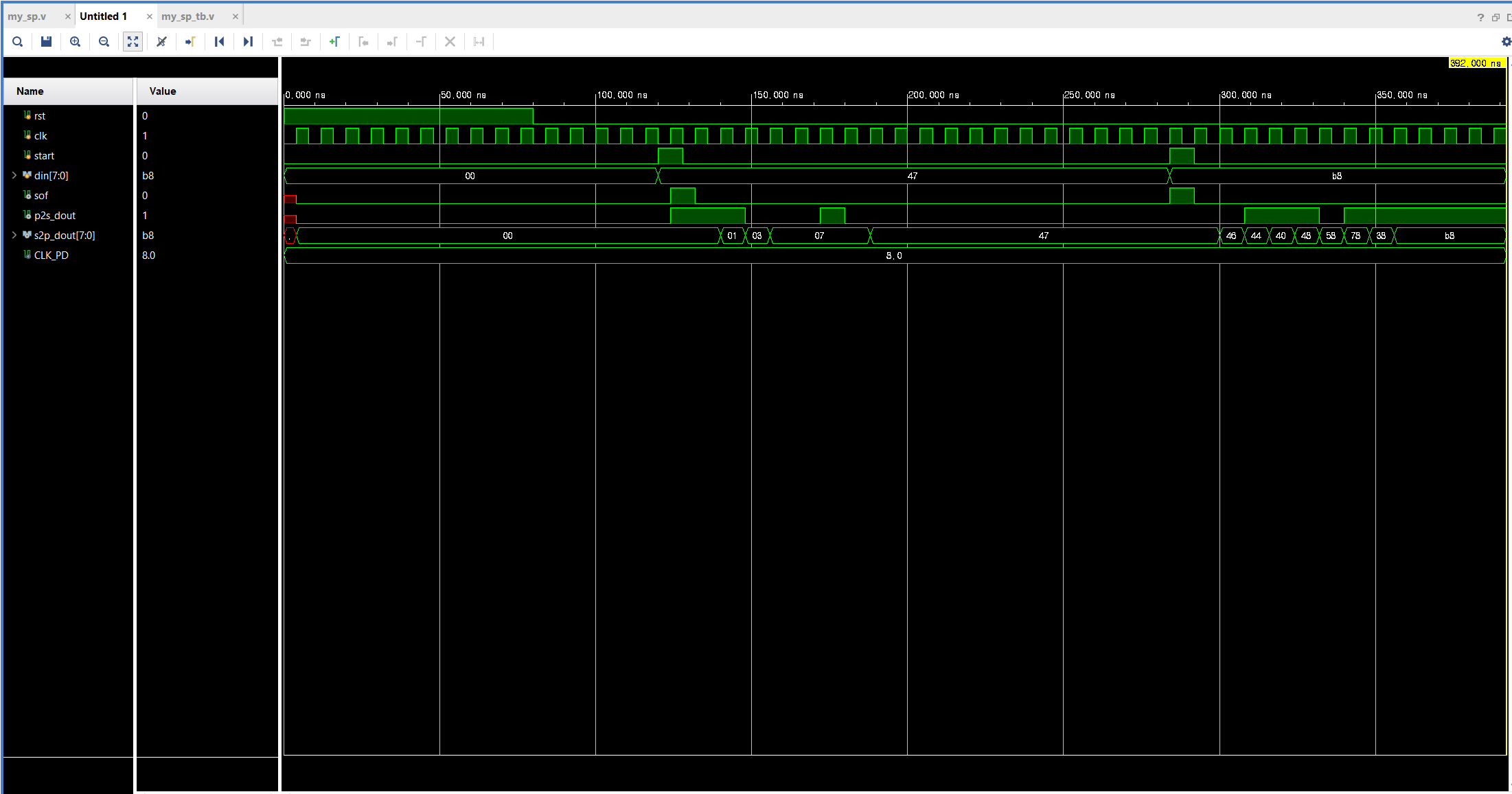

4. Behavioral Simualtion 진행 후 파형 확인







---

실습 2: Uart_rx

---

1. my_uart 프로젝트 생성

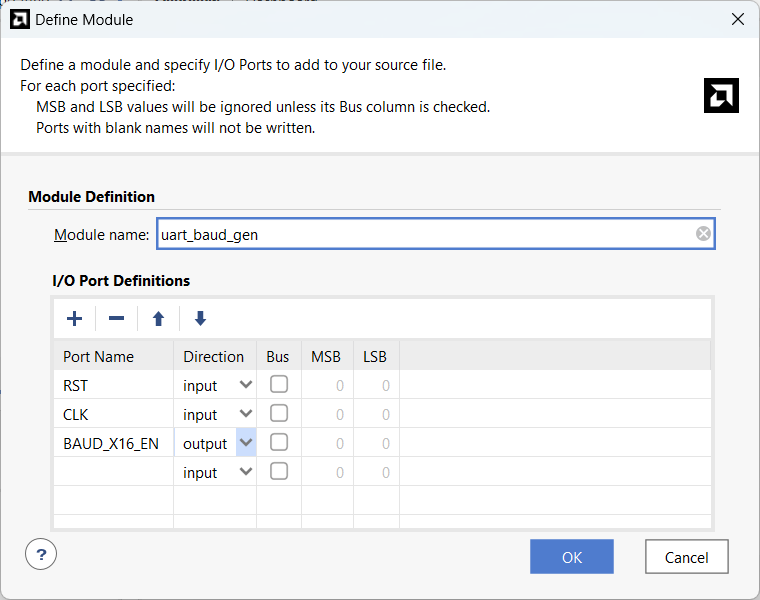

2. Add or Create Design Sources - Create File - uart_baud_gen.v 생성 후 포트 정의





3. 코드 작성

`timescale 1ns / 1ps
//////////////////////////////////////////////////////////////////////////////////
// Company:
// Engineer:
//
// Create Date: 2024/05/17 15:27:03
// Design Name:
// Module Name: uart_baud_gen
// Project Name:
// Target Devices:
// Tool Versions:
// Description:
//
// Dependencies:
//
// Revision:
// Revision 0.01 - File Created
// Additional Comments:
//
//////////////////////////////////////////////////////////////////////////////////


module uart_baud_gen(
    input RST,
    input CLK,
    output BAUD_X16_EN
    );
parameter CLK_FREQ = 125_000_000;
parameter BAUD_RATE = 9600;
localparam MAX_CNT = CLK_FREQ / (BAUD_RATE * 16);

reg [12:0]  cnt;
reg         enable;

assign BAUD_X16_EN = enable;

always @(posedge CLK)
begin
    if(RST) begin
        cnt <= 13'd0;
        enable <= 1'b0;
    end else begin
        if (cnt == (MAX_CNT-1)) begin   //cnt가 0부터 시작하므로 MAX_CNT - 1까지 해야 수가 맞음
            cnt <= 13'd0;
            enable <= 1'b1;
        end else begin
            cnt <= cnt + 1;
            enable <= 1'b0;
        end
    end
end //always

endmodule

4. Simulation을 위해 Add or Create Simulation sources - Create File로 uart_baud_gen_tb.v파일 생성

5. 코드 작성

`timescale 1ns / 1ps
//////////////////////////////////////////////////////////////////////////////////
// Company:
// Engineer:
//
// Create Date: 2024/05/17 16:03:20
// Design Name:
// Module Name: uart_baud_gen_tb
// Project Name:
// Target Devices:
// Tool Versions:
// Description:
//
// Dependencies:
//
// Revision:
// Revision 0.01 - File Created
// Additional Comments:
//
//////////////////////////////////////////////////////////////////////////////////


module uart_baud_gen_tb();
parameter CLK_PD = 8.0;

reg rst, clk;
wire enable;

uart_baud_gen uut(  //포트 맵핑
    .RST (rst),
    .CLK (clk),
    .BAUD_X16_EN (enable)
    );

initial begin
    rst = 1'b1;
    #(CLK_PD*10);
    rst = 1'b0;
end

initial clk = 1'b0;
always #(CLK_PD/2) clk = ~clk;


endmodule

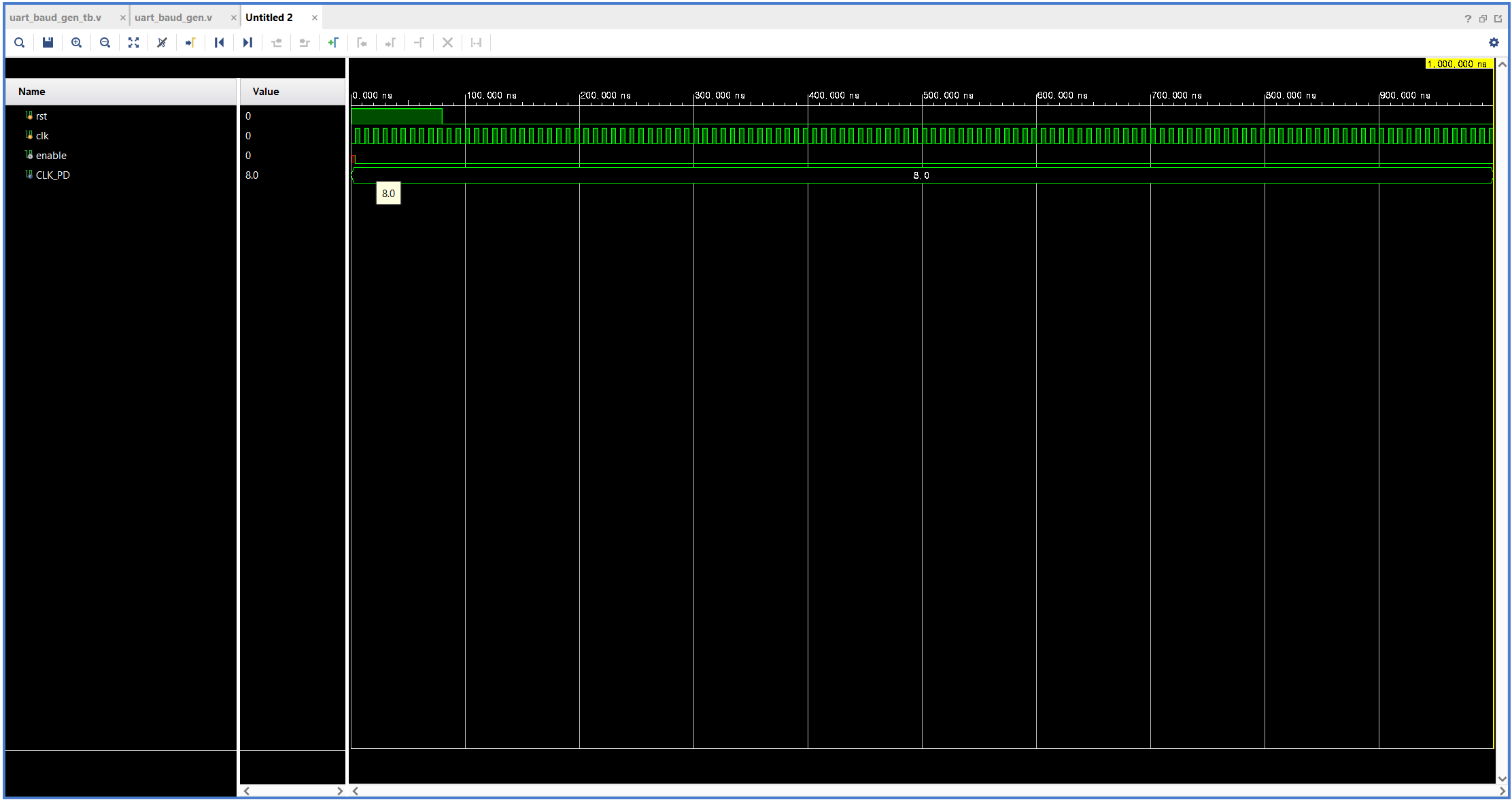

6. simulation 결과 확인
