Verilog 복습 프로젝트 - 스탑워치 / 계산기 / 타이머 / Pmod OLED

자습시간/Verilog

Verilog 복습 프로젝트 - 스탑워치 / 계산기 / 타이머 / Pmod OLED

semicon_circuitdesigner 2025. 2. 11. 11:07

방학동안 verilog 복습을 진행하며 기본적인 하드웨어부터 구현해보고, 이후 pmod OLED를 활용한 장치까지 구현할 예정입니다.

프로젝트 개요

기간: 2025.01.20~2025.02.28 (약 1개월)
목적: verilog를 이용한 하드웨어 설계 복습 및 SoC, IP에 대한 이해
목표: 7세그먼트, 키패드, 버튼, OLED 디스플레이 등을 활용한 스탑워치, 계산기 등 하드웨어 설계

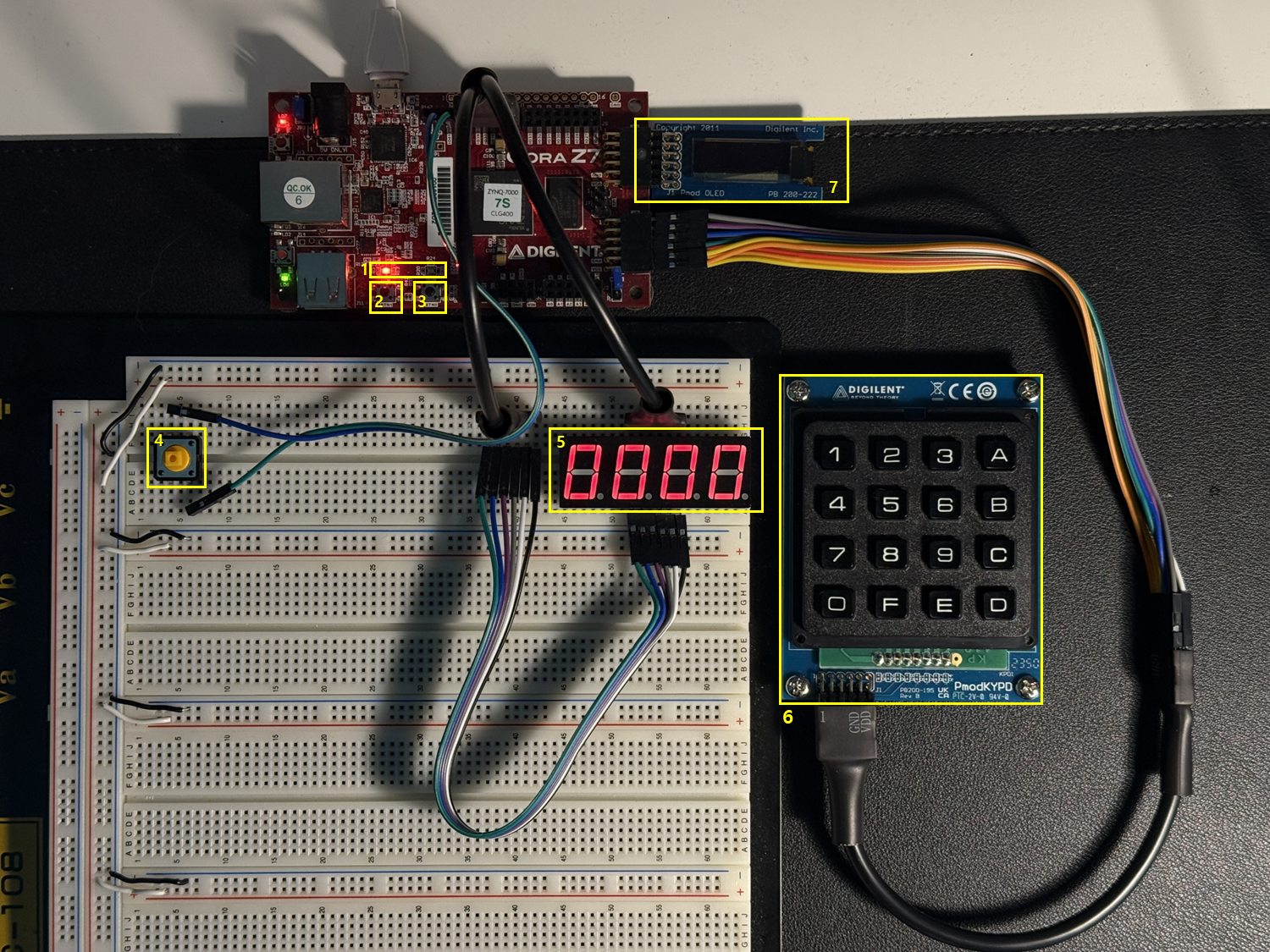

하드웨어 구성

1. 모드 표시 LED: 모드에 따라 LED의 색, 위치가 변함
2. 스탑워치 Start/Stop 버튼
3. 스탑워치 Reset 버튼
4. 모드 변경 버튼
5. 7세그먼트 디스플레이
6. 계산기 키패드
7. Pmod OLED 디스플레이

FPGA 보드: Digilent Cora Z7

기존에 반도체 설계교육에서 사용하던 Digilent사의 Cora Z7을 활용합니다. 이번에 복습을 진행하며 설계 교육에서는 핀 설정 시 직접 schematic을 찾아보았는데, master xdc파일을 찾아서 버튼이나 LED 등을 매핑할 때는 이 파일을 이용했습니다.

[ Cora Z7-07S Master.xdc ]

## This file is a general .xdc for the Cora Z7-07S Rev. B
## To use it in a project:
## - uncomment the lines corresponding to used pins
## - rename the used ports (in each line, after get_ports) according to the top level signal names in the project

## PL System Clock
#set_property -dict { PACKAGE_PIN H16   IOSTANDARD LVCMOS33 } [get_ports { clk }]; #IO_L13P_T2_MRCC_35 Sch=sysclk
#create_clock -add -name sys_clk_pin -period 8.00 -waveform {0 4} [get_ports { clk }];#set

## RGB LEDs
#set_property -dict { PACKAGE_PIN L15   IOSTANDARD LVCMOS33 } [get_ports { led0_b }]; #IO_L22N_T3_AD7N_35 Sch=led0_b
#set_property -dict { PACKAGE_PIN G17   IOSTANDARD LVCMOS33 } [get_ports { led0_g }]; #IO_L16P_T2_35 Sch=led0_g
#set_property -dict { PACKAGE_PIN N15   IOSTANDARD LVCMOS33 } [get_ports { led0_r }]; #IO_L21P_T3_DQS_AD14P_35 Sch=led0_r
#set_property -dict { PACKAGE_PIN G14   IOSTANDARD LVCMOS33 } [get_ports { led1_b }]; #IO_0_35 Sch=led1_b
#set_property -dict { PACKAGE_PIN L14   IOSTANDARD LVCMOS33 } [get_ports { led1_g }]; #IO_L22P_T3_AD7P_35 Sch=led1_g
#set_property -dict { PACKAGE_PIN M15   IOSTANDARD LVCMOS33 } [get_ports { led1_r }]; #IO_L23N_T3_35 Sch=led1_r

## Buttons
#set_property -dict { PACKAGE_PIN D20   IOSTANDARD LVCMOS33 } [get_ports { btn[0] }]; #IO_L4N_T0_35 Sch=btn[0]
#set_property -dict { PACKAGE_PIN D19   IOSTANDARD LVCMOS33 } [get_ports { btn[1] }]; #IO_L4P_T0_35 Sch=btn[1]

## Pmod Header JA
#set_property -dict { PACKAGE_PIN Y18   IOSTANDARD LVCMOS33 } [get_ports { ja[0] }]; #IO_L17P_T2_34 Sch=ja_p[1]
#set_property -dict { PACKAGE_PIN Y19   IOSTANDARD LVCMOS33 } [get_ports { ja[1] }]; #IO_L17N_T2_34 Sch=ja_n[1]
#set_property -dict { PACKAGE_PIN Y16   IOSTANDARD LVCMOS33 } [get_ports { ja[2] }]; #IO_L7P_T1_34 Sch=ja_p[2]
#set_property -dict { PACKAGE_PIN Y17   IOSTANDARD LVCMOS33 } [get_ports { ja[3] }]; #IO_L7N_T1_34 Sch=ja_n[2]
#set_property -dict { PACKAGE_PIN U18   IOSTANDARD LVCMOS33 } [get_ports { ja[4] }]; #IO_L12P_T1_MRCC_34 Sch=ja_p[3]
#set_property -dict { PACKAGE_PIN U19   IOSTANDARD LVCMOS33 } [get_ports { ja[5] }]; #IO_L12N_T1_MRCC_34 Sch=ja_n[3]
#set_property -dict { PACKAGE_PIN W18   IOSTANDARD LVCMOS33 } [get_ports { ja[6] }]; #IO_L22P_T3_34 Sch=ja_p[4]
#set_property -dict { PACKAGE_PIN W19   IOSTANDARD LVCMOS33 } [get_ports { ja[7] }]; #IO_L22N_T3_34 Sch=ja_n[4]

## Pmod Header JB
#set_property -dict { PACKAGE_PIN W14   IOSTANDARD LVCMOS33 } [get_ports { jb[0] }]; #IO_L8P_T1_34 Sch=jb_p[1]
#set_property -dict { PACKAGE_PIN Y14   IOSTANDARD LVCMOS33 } [get_ports { jb[1] }]; #IO_L8N_T1_34 Sch=jb_n[1]
#set_property -dict { PACKAGE_PIN T11   IOSTANDARD LVCMOS33 } [get_ports { jb[2] }]; #IO_L1P_T0_34 Sch=jb_p[2]
#set_property -dict { PACKAGE_PIN T10   IOSTANDARD LVCMOS33 } [get_ports { jb[3] }]; #IO_L1N_T0_34 Sch=jb_n[2]
#set_property -dict { PACKAGE_PIN V16   IOSTANDARD LVCMOS33 } [get_ports { jb[4] }]; #IO_L18P_T2_34 Sch=jb_p[3]
#set_property -dict { PACKAGE_PIN W16   IOSTANDARD LVCMOS33 } [get_ports { jb[5] }]; #IO_L18N_T2_34 Sch=jb_n[3]
#set_property -dict { PACKAGE_PIN V12   IOSTANDARD LVCMOS33 } [get_ports { jb[6] }]; #IO_L4P_T0_34 Sch=jb_p[4]
#set_property -dict { PACKAGE_PIN W13   IOSTANDARD LVCMOS33 } [get_ports { jb[7] }]; #IO_L4N_T0_34 Sch=jb_n[4]

## Crypto SDA
#set_property -dict { PACKAGE_PIN J15   IOSTANDARD LVCMOS33 } [get_ports { crypto_sda }];

## Dedicated Analog Inputs
#set_property -dict { PACKAGE_PIN K9    IOSTANDARD LVCMOS33 } [get_ports { Vp_Vn_0_v_p }]; #VP_0 Sch=xadc_v_p
#set_property -dict { PACKAGE_PIN L10   IOSTANDARD LVCMOS33 } [get_ports { Vp_Vn_0_v_n }]; #VN_0 Sch=xadc_v_n

## ChipKit Outer Analog Header - as Single-Ended Analog Inputs
## NOTE: These ports can be used as single-ended analog inputs with voltages from 0-3.3V (ChipKit analog pins A0-A5) or as digital I/O.
## WARNING: Do not use both sets of constraints at the same time!
#set_property -dict { PACKAGE_PIN E17   IOSTANDARD LVCMOS33 } [get_ports { Vaux1_0_v_p }]; #IO_L3P_T0_DQS_AD1P_35 Sch=ck_an_p[0]
#set_property -dict { PACKAGE_PIN D18   IOSTANDARD LVCMOS33 } [get_ports { Vaux1_0_v_n }]; #IO_L3N_T0_DQS_AD1N_35 Sch=ck_an_n[0]
#set_property -dict { PACKAGE_PIN E18   IOSTANDARD LVCMOS33 } [get_ports { Vaux9_0_v_p }]; #IO_L5P_T0_AD9P_35 Sch=ck_an_p[1]
#set_property -dict { PACKAGE_PIN E19   IOSTANDARD LVCMOS33 } [get_ports { Vaux9_0_v_n }]; #IO_L5N_T0_AD9N_35 Sch=ck_an_n[1]
#set_property -dict { PACKAGE_PIN K14   IOSTANDARD LVCMOS33 } [get_ports { Vaux6_0_v_p }]; #IO_L20P_T3_AD6P_35 Sch=ck_an_p[2]
#set_property -dict { PACKAGE_PIN J14   IOSTANDARD LVCMOS33 } [get_ports { Vaux6_0_v_n }]; #IO_L20N_T3_AD6N_35 Sch=ck_an_n[2]
#set_property -dict { PACKAGE_PIN K16   IOSTANDARD LVCMOS33 } [get_ports { Vaux15_0_v_p }]; #IO_L24P_T3_AD15P_35 Sch=ck_an_p[3]
#set_property -dict { PACKAGE_PIN J16   IOSTANDARD LVCMOS33 } [get_ports { Vaux15_0_v_n }]; #IO_L24N_T3_AD15N_35 Sch=ck_an_n[3]
#set_property -dict { PACKAGE_PIN J20   IOSTANDARD LVCMOS33 } [get_ports { Vaux5_0_v_p }]; #IO_L17P_T2_AD5P_35 Sch=ck_an_p[4]
#set_property -dict { PACKAGE_PIN H20   IOSTANDARD LVCMOS33 } [get_ports { Vaux5_0_v_n }]; #IO_L17N_T2_AD5N_35 Sch=ck_an_n[4]
#set_property -dict { PACKAGE_PIN G19   IOSTANDARD LVCMOS33 } [get_ports { Vaux13_0_v_p }]; #IO_L18P_T2_AD13P_35 Sch=ck_an_p[5]
#set_property -dict { PACKAGE_PIN G20   IOSTANDARD LVCMOS33 } [get_ports { Vaux13_0_v_n }]; #IO_L18N_T2_AD13N_35 Sch=ck_an_n[5]
## ChipKit Outer Analog Header - as Digital I/O
## NOTE: The following constraints should be used when using these ports as digital I/O.
#set_property -dict { PACKAGE_PIN F17   IOSTANDARD LVCMOS33 } [get_ports { ck_a0 }]; #IO_L6N_T0_VREF_35 Sch=ck_a[0]
#set_property -dict { PACKAGE_PIN J19   IOSTANDARD LVCMOS33 } [get_ports { ck_a1 }]; #IO_L10N_T1_AD11N_35 Sch=ck_a[1]
#set_property -dict { PACKAGE_PIN K17   IOSTANDARD LVCMOS33 } [get_ports { ck_a2 }]; #IO_L12P_T1_MRCC_35 Sch=ck_a[2]
#set_property -dict { PACKAGE_PIN L16   IOSTANDARD LVCMOS33 } [get_ports { ck_a3 }]; #IO_L11P_T1_SRCC_35 Sch=ck_a[3]
#set_property -dict { PACKAGE_PIN N16   IOSTANDARD LVCMOS33 } [get_ports { ck_a4 }]; #IO_L21N_T3_DQS_AD14N_35 Sch=ck_a[4]
#set_property -dict { PACKAGE_PIN P14   IOSTANDARD LVCMOS33 } [get_ports { ck_a5 }]; #IO_L6P_T0_34 Sch=ck_a[5]

## ChipKit Inner Analog Header - as Differential Analog Inputs
## NOTE: These ports can be used as differential analog inputs with voltages from 0-1.0V (ChipKit analog pins A6-A11) or as digital I/O.
## WARNING: Do not use both sets of constraints at the same time!
#set_property -dict { PACKAGE_PIN C20   IOSTANDARD LVCMOS33 } [get_ports { Vaux0_0_v_p }]; #IO_L1P_T0_AD0P_35 Sch=ad_p[0]
#set_property -dict { PACKAGE_PIN B20   IOSTANDARD LVCMOS33 } [get_ports { Vaux0_0_v_n }]; #IO_L1N_T0_AD0N_35 Sch=ad_n[0]
#set_property -dict { PACKAGE_PIN F19   IOSTANDARD LVCMOS33 } [get_ports { Vaux12_0_v_p }]; #IO_L15P_T2_DQS_AD12P_35 Sch=ad_p[12]
#set_property -dict { PACKAGE_PIN F20   IOSTANDARD LVCMOS33 } [get_ports { Vaux12_0_v_n }]; #IO_L15N_T2_DQS_AD12N_35 Sch=ad_n[12]
#set_property -dict { PACKAGE_PIN B19   IOSTANDARD LVCMOS33 } [get_ports { Vaux8_0_v_p }]; #IO_L2P_T0_AD8P_35 Sch=ad_p[8]
#set_property -dict { PACKAGE_PIN A20   IOSTANDARD LVCMOS33 } [get_ports { Vaux8_0_v_n }]; #IO_L2N_T0_AD8N_35 Sch=ad_n[8]
## ChipKit Inner Analog Header - as Digital I/O
## NOTE: The following constraints should be used when using the inner analog header ports as digital I/O.
#set_property -dict { PACKAGE_PIN C20   IOSTANDARD LVCMOS33 } [get_ports { ck_a6 }]; #IO_L1P_T0_AD0P_35 Sch=ad_p[0]
#set_property -dict { PACKAGE_PIN B20   IOSTANDARD LVCMOS33 } [get_ports { ck_a7 }]; #IO_L1N_T0_AD0N_35 Sch=ad_n[0]
#set_property -dict { PACKAGE_PIN F19   IOSTANDARD LVCMOS33 } [get_ports { ck_a8 }]; #IO_L15P_T2_DQS_AD12P_35 Sch=ad_p[12]
#set_property -dict { PACKAGE_PIN F20   IOSTANDARD LVCMOS33 } [get_ports { ck_a9 }]; #IO_L15N_T2_DQS_AD12N_35 Sch=ad_n[12]
#set_property -dict { PACKAGE_PIN B19   IOSTANDARD LVCMOS33 } [get_ports { ck_a10 }]; #IO_L2P_T0_AD8P_35 Sch=ad_p[8]
#set_property -dict { PACKAGE_PIN A20   IOSTANDARD LVCMOS33 } [get_ports { ck_a11 }]; #IO_L2N_T0_AD8N_35 Sch=ad_n[8]

## ChipKit Outer Digital Header
#set_property -dict { PACKAGE_PIN U14   IOSTANDARD LVCMOS33 } [get_ports { ck_io0 }]; #IO_L11P_T1_SRCC_34 Sch=ck_io[0]
#set_property -dict { PACKAGE_PIN V13   IOSTANDARD LVCMOS33 } [get_ports { ck_io1 }]; #IO_L3N_T0_DQS_34 Sch=ck_io[1]
#set_property -dict { PACKAGE_PIN T14   IOSTANDARD LVCMOS33 } [get_ports { ck_io2 }]; #IO_L5P_T0_34 Sch=ck_io[2]
#set_property -dict { PACKAGE_PIN T15   IOSTANDARD LVCMOS33 } [get_ports { ck_io3 }]; #IO_L5N_T0_34 Sch=ck_io[3]
#set_property -dict { PACKAGE_PIN V17   IOSTANDARD LVCMOS33 } [get_ports { ck_io4 }]; #IO_L21P_T3_DQS_34 Sch=ck_io[4]
#set_property -dict { PACKAGE_PIN V18   IOSTANDARD LVCMOS33 } [get_ports { ck_io5 }]; #IO_L21N_T3_DQS_34 Sch=ck_io[5]
#set_property -dict { PACKAGE_PIN R17   IOSTANDARD LVCMOS33 } [get_ports { ck_io6 }]; #IO_L19N_T3_VREF_34 Sch=ck_io[6]
#set_property -dict { PACKAGE_PIN R14   IOSTANDARD LVCMOS33 } [get_ports { ck_io7 }]; #IO_L6N_T0_VREF_34 Sch=ck_io[7]
#set_property -dict { PACKAGE_PIN N18   IOSTANDARD LVCMOS33 } [get_ports { ck_io8 }]; #IO_L13P_T2_MRCC_34 Sch=ck_io[8]
#set_property -dict { PACKAGE_PIN M18   IOSTANDARD LVCMOS33 } [get_ports { ck_io9 }]; #IO_L8N_T1_AD10N_35 Sch=ck_io[9]
#set_property -dict { PACKAGE_PIN U15   IOSTANDARD LVCMOS33 } [get_ports { ck_io10 }]; #IO_L11N_T1_SRCC_34 Sch=ck_io[10]
#set_property -dict { PACKAGE_PIN K18   IOSTANDARD LVCMOS33 } [get_ports { ck_io11 }]; #IO_L12N_T1_MRCC_35 Sch=ck_io[11]
#set_property -dict { PACKAGE_PIN J18   IOSTANDARD LVCMOS33 } [get_ports { ck_io12 }]; #IO_L14P_T2_AD4P_SRCC_35 Sch=ck_io[12]
#set_property -dict { PACKAGE_PIN G15   IOSTANDARD LVCMOS33 } [get_ports { ck_io13 }]; #IO_L19N_T3_VREF_35 Sch=ck_io[13]

## ChipKit Inner Digital Header
#set_property -dict { PACKAGE_PIN R16   IOSTANDARD LVCMOS33 } [get_ports { ck_io26 }]; #IO_L19P_T3_34 Sch=ck_io[26]
#set_property -dict { PACKAGE_PIN U12   IOSTANDARD LVCMOS33 } [get_ports { ck_io27 }]; #IO_L2N_T0_34 Sch=ck_io[27]
#set_property -dict { PACKAGE_PIN U13   IOSTANDARD LVCMOS33 } [get_ports { ck_io28 }]; #IO_L3P_T0_DQS_PUDC_B_34 Sch=ck_io[28]
#set_property -dict { PACKAGE_PIN V15   IOSTANDARD LVCMOS33 } [get_ports { ck_io29 }]; #IO_L10P_T1_34 Sch=ck_io[29]
#set_property -dict { PACKAGE_PIN T16   IOSTANDARD LVCMOS33 } [get_ports { ck_io30 }]; #IO_L9P_T1_DQS_34 Sch=ck_io[30]
#set_property -dict { PACKAGE_PIN U17   IOSTANDARD LVCMOS33 } [get_ports { ck_io31 }]; #IO_L9N_T1_DQS_34 Sch=ck_io[31]
#set_property -dict { PACKAGE_PIN T17   IOSTANDARD LVCMOS33 } [get_ports { ck_io32 }]; #IO_L20P_T3_34 Sch=ck_io[32]
#set_property -dict { PACKAGE_PIN R18   IOSTANDARD LVCMOS33 } [get_ports { ck_io33 }]; #IO_L20N_T3_34 Sch=ck_io[33]
#set_property -dict { PACKAGE_PIN P18   IOSTANDARD LVCMOS33 } [get_ports { ck_io34 }]; #IO_L23N_T3_34 Sch=ck_io[34]
#set_property -dict { PACKAGE_PIN N17   IOSTANDARD LVCMOS33 } [get_ports { ck_io35 }]; #IO_L23P_T3_34 Sch=ck_io[35]
#set_property -dict { PACKAGE_PIN M17   IOSTANDARD LVCMOS33 } [get_ports { ck_io36 }]; #IO_L8P_T1_AD10P_35 Sch=ck_io[36]
#set_property -dict { PACKAGE_PIN L17   IOSTANDARD LVCMOS33 } [get_ports { ck_io37 }]; #IO_L11N_T1_SRCC_35 Sch=ck_io[37]
#set_property -dict { PACKAGE_PIN H17   IOSTANDARD LVCMOS33 } [get_ports { ck_io38 }]; #IO_L13N_T2_MRCC_35 Sch=ck_io[38]
#set_property -dict { PACKAGE_PIN H18   IOSTANDARD LVCMOS33 } [get_ports { ck_io39 }]; #IO_L14N_T2_AD4N_SRCC_35 Sch=ck_io[39]
#set_property -dict { PACKAGE_PIN G18   IOSTANDARD LVCMOS33 } [get_ports { ck_io40 }]; #IO_L16N_T2_35 Sch=ck_io[40]
#set_property -dict { PACKAGE_PIN L20   IOSTANDARD LVCMOS33 } [get_ports { ck_io41 }]; #IO_L9N_T1_DQS_AD3N_35 Sch=ck_io[41]

## ChipKit SPI
#set_property -dict { PACKAGE_PIN W15   IOSTANDARD LVCMOS33 } [get_ports { ck_miso }]; #IO_L10N_T1_34 Sch=ck_miso
#set_property -dict { PACKAGE_PIN T12   IOSTANDARD LVCMOS33 } [get_ports { ck_mosi }]; #IO_L2P_T0_34 Sch=ck_mosi
#set_property -dict { PACKAGE_PIN H15   IOSTANDARD LVCMOS33 } [get_ports { ck_sck }]; #IO_L19P_T3_35 Sch=ck_sck
#set_property -dict { PACKAGE_PIN F16   IOSTANDARD LVCMOS33 } [get_ports { ck_ss }]; #IO_L6P_T0_35 Sch=ck_ss

## ChipKit I2C
#set_property -dict { PACKAGE_PIN P16   IOSTANDARD LVCMOS33 } [get_ports { ck_scl }]; #IO_L24N_T3_34 Sch=ck_scl
#set_property -dict { PACKAGE_PIN P15   IOSTANDARD LVCMOS33 } [get_ports { ck_sda }]; #IO_L24P_T3_34 Sch=ck_sda

##Misc. ChipKit signals
#set_property -dict { PACKAGE_PIN M20   IOSTANDARD LVCMOS33 } [get_ports { ck_ioa }]; #IO_L7N_T1_AD2N_35 Sch=ck_ioa

## User Digital I/O Header J1
#set_property -dict { PACKAGE_PIN L19   IOSTANDARD LVCMOS33 } [get_ports { user_dio[1] }]; #IO_L9P_T1_DQS_AD3P_35 Sch=user_dio[1]
#set_property -dict { PACKAGE_PIN M19   IOSTANDARD LVCMOS33 } [get_ports { user_dio[2] }]; #IO_L7P_T1_AD2P_35 Sch=user_dio[2]
#set_property -dict { PACKAGE_PIN N20   IOSTANDARD LVCMOS33 } [get_ports { user_dio[3] }]; #IO_L14P_T2_SRCC_34 Sch=user_dio[3]
#set_property -dict { PACKAGE_PIN P20   IOSTANDARD LVCMOS33 } [get_ports { user_dio[4] }]; #IO_L14N_T2_SRCC_34 Sch=user_dio[4]
#set_property -dict { PACKAGE_PIN P19   IOSTANDARD LVCMOS33 } [get_ports { user_dio[5] }]; #IO_L13N_T2_MRCC_34 Sch=user_dio[5]
#set_property -dict { PACKAGE_PIN R19   IOSTANDARD LVCMOS33 } [get_ports { user_dio[6] }]; #IO_0_34 Sch=user_dio[6]
#set_property -dict { PACKAGE_PIN T20   IOSTANDARD LVCMOS33 } [get_ports { user_dio[7] }]; #IO_L15P_T2_DQS_34 Sch=user_dio[7]
#set_property -dict { PACKAGE_PIN T19   IOSTANDARD LVCMOS33 } [get_ports { user_dio[8] }]; #IO_25_34 Sch=user_dio[8]
#set_property -dict { PACKAGE_PIN U20   IOSTANDARD LVCMOS33 } [get_ports { user_dio[9] }]; #IO_L15N_T2_DQS_34 Sch=user_dio[9]
#set_property -dict { PACKAGE_PIN V20   IOSTANDARD LVCMOS33 } [get_ports { user_dio[10] }]; #IO_L16P_T2_34 Sch=user_dio[10]
#set_property -dict { PACKAGE_PIN W20   IOSTANDARD LVCMOS33 } [get_ports { user_dio[11] }]; #IO_L16N_T2_34 Sch=user_dio[11]
#set_property -dict { PACKAGE_PIN K19   IOSTANDARD LVCMOS33 } [get_ports { user_dio[12] }]; #IO_L10P_T1_AD11P_35 Sch=user_dio[12]

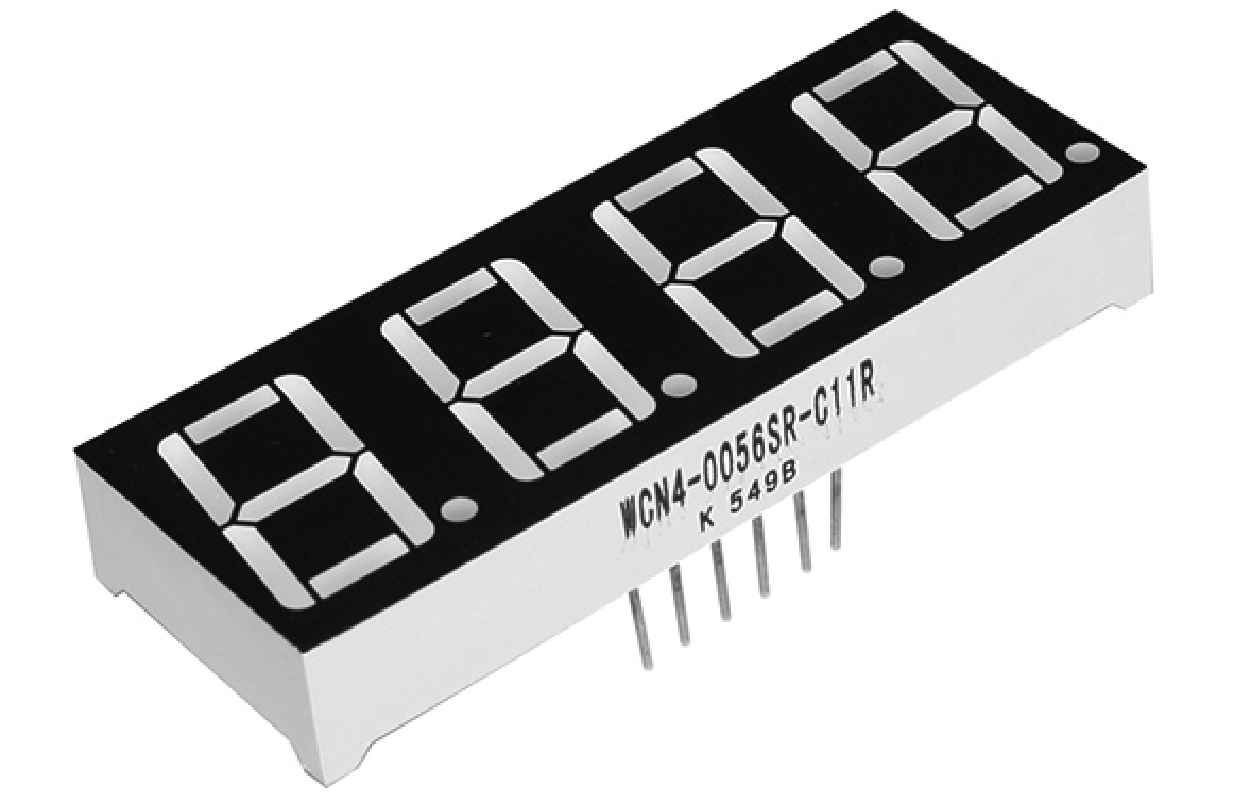

7세그먼트 디스플레이: WCN4-0056SR-C11R

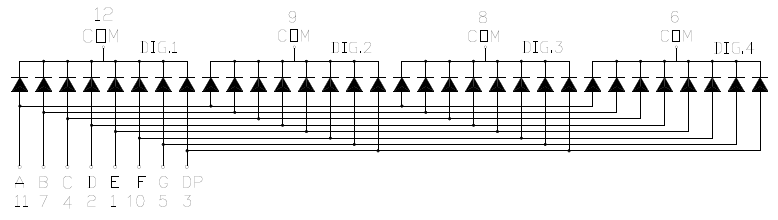

스탑워치나 계산기에서 숫자를 표시하기 위해 네자리 7세그먼트 디스플레이를 사용했습니다. 내부 회로는 아래와 같이 구성되어 있으며, verilog를 활용한 제어 방식은 아래 게시물에서 설명합니다.

Verilog 복습 프로젝트(1) - 7세그먼트 제어

스탑워치를 설계하기에 앞서, 숫자를 표시하기 위한 네자리 7세그먼트 디스플레이를 제어하기 위한 코드를 작성했습니다.이번에 사용한 디스플레이는 이전에 반도체 설계교육 중 임베디드 시

semicon-circuit.tistory.com

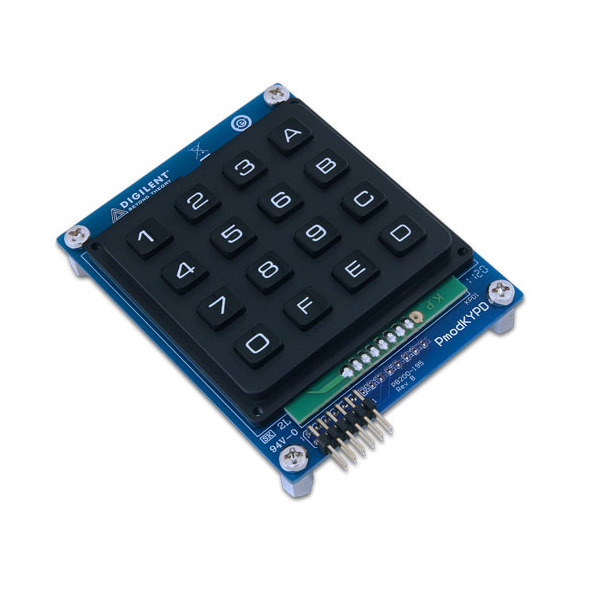

16자리 키패드: [Digilent] Pmod KYPD (16-button Keypad 410-195)

계산기 모드에서 숫자 입력 시 사용할 키패드는 Digilent사의 Pmod KYPD를 이용했습니다.

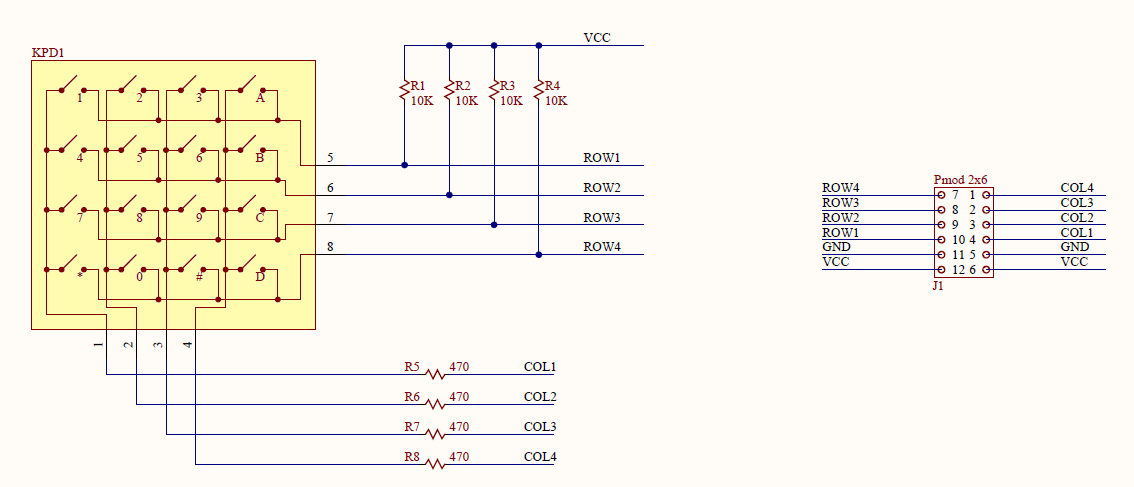

행을 입력으로, 열을 출력으로 설정한 뒤 스캔하고자 하는 열만 LOW로 설정했습니다. 이 때 버튼을 누르면 LOW값이 버튼의 행으로 전달되어 어느 위치의 버튼이 눌렸는지 파악할 수 있습니다.

Verilog 복습 프로젝트(3) - Decoder 설계 [Pmod KYPD 이용]

계산기를 설계할 때에는 Digilent의 Pmod KYPD를 통해 값을 입력받아 숫자나 문자로 변환하는 Decoder와 Decoder로부터 받은 값을 연산하여 세그먼트 디스플레이로 보내기 위한 calculator 모듈이 필요합니

semicon-circuit.tistory.com

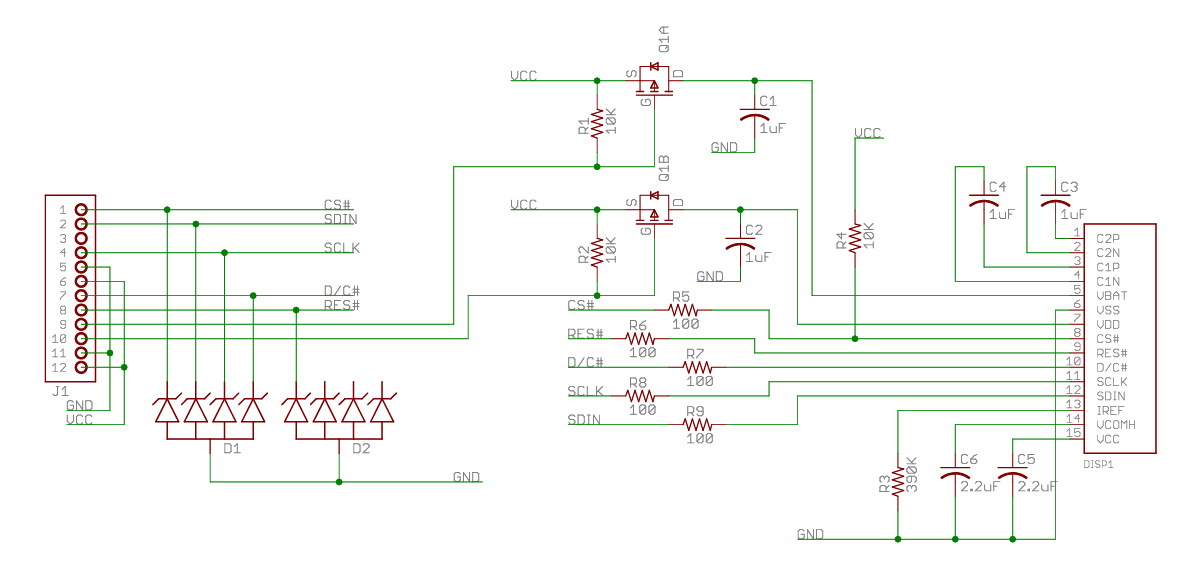

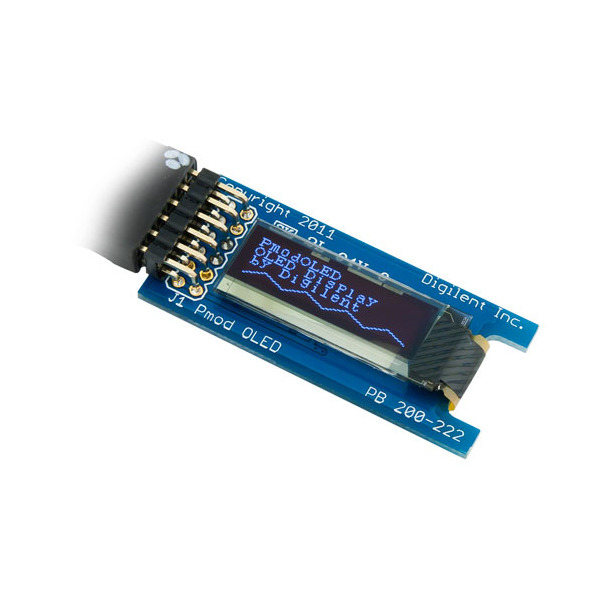

Pmod OLED: [Digilent] 128 x 32 Pixel Monochromatic OLED Display 410-222

추후 OLED를 활용해 현재 모드를 표시하거나, 간단한 게임을 구현하거나 모드를 표시하기 위해 활용할 예정입니다.

설계 진행 상황 업데이트

2025.01.26 | 세그먼트, 4x4버튼 제어(이후 Pmod KYPD로 변경)

2025.01.28 | 스탑워치 완료

2025.02.09 | 계산기 완료

Mode 1: x [ Left LED_R ]

Mode 2: 스탑워치 [ Left LED_B ]

Mode 3: 계산기 [ Right LED_R ]

Mode 4: x [ Right LED_B ]

계산기, 스탑워치 작동

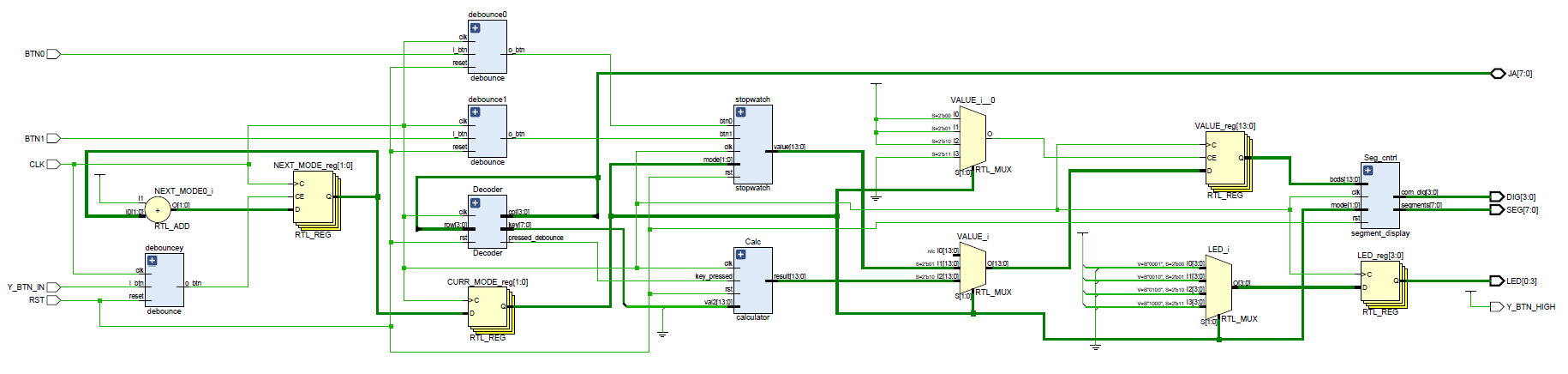

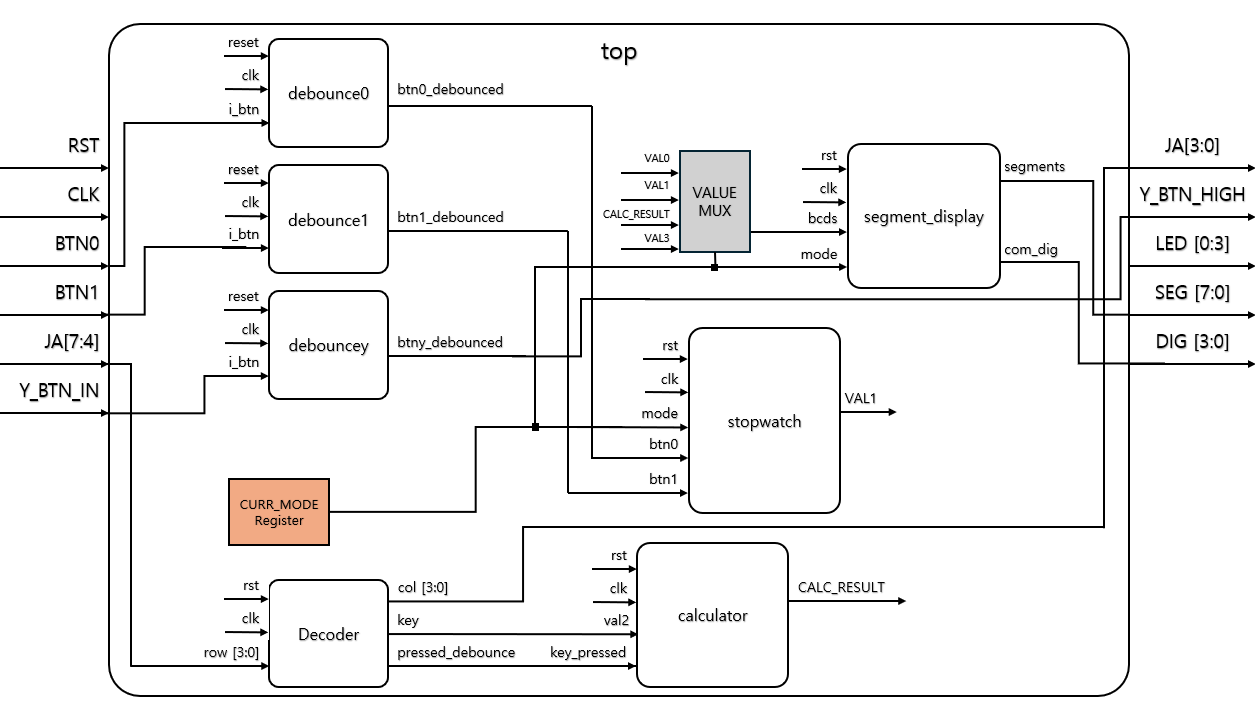

top module [ 2025.02.09 ]

`timescale 1ns / 1ps

module top(
    input RST,
    input CLK,
    input BTN0,
    input BTN1,
	inout [7:0] JA,			// Port JA on Nexys3, JA[3:0] is Columns, JA[7:4] is rows
    input Y_BTN_IN,     //L20
	output Y_BTN_HIGH,      //G18
    output reg [0:3] LED,
    output [7:0] SEG,
    output [3:0] DIG
    );
    reg [13:0] VALUE;
    wire [13:0] VAL0, VAL1, VAL2, VAL3, CALC_RESULT; //VALUE는 세그먼트 전송 값
    reg [1:0] CURR_MODE, NEXT_MODE;
    wire btn0_debounced, btn1_debounced, btny_debounced;

    //Button Operation
    assign Y_BTN_HIGH = 1'b1;

    initial begin
        CURR_MODE = 2'b0;
        VALUE = 0;
    end

    always @(posedge CLK) begin
        CURR_MODE <= NEXT_MODE;
        if(btny_debounced) NEXT_MODE <= NEXT_MODE + 1;
        case(CURR_MODE)
            0: begin        //Timer
                LED <= 4'b0001;  //LED1_R\
                VALUE <= VAL0;
            end
            1: begin        //Stopwatch
                LED <= 4'b0010;   //LED1_B
                VALUE <= VAL1;
            end
            2: begin        //Caculator
                LED <= 4'b0100;   //LED0_R
                VALUE <= CALC_RESULT;
            end
            3: LED <= 4'b1000;   //LED0_B
            default: LED <= 4'b0000;
        endcase
    end

    wire KEY_PRESSED;
    //Instantiation
    calculator              Calc                        (.rst (RST), .clk (CLK), .val2 (VAL2), .key_pressed (KEY_PRESSED), .result(CALC_RESULT));
    Decoder                   Decoder                ( .rst (RST), .clk(CLK), .row(JA[7:4]), .col(JA[3:0]), .key(VAL2), .pressed_debounce (KEY_PRESSED)); //KYPD to Num Decoder
    segment_display Seg_cntrl              ( .rst (RST), .clk (CLK), .bcds(VALUE), .mode(CURR_MODE), .segments(SEG), .com_dig (DIG));
    debounce                debounce0          (.clk (CLK), .reset (RST), .i_btn (BTN0), .o_btn (btn0_debounced));
    debounce                debounce1          (.clk (CLK), .reset (RST), .i_btn (BTN1), .o_btn (btn1_debounced));
    debounce                debouncey          (.clk (CLK), .reset (RST), .i_btn (Y_BTN_IN), .o_btn (btny_debounced));
    stopwatch               stopwatch          ( .rst(RST), .clk(CLK), .mode(CURR_MODE), .btn1(btn1_debounced), .btn0(btn0_debounced), .value(VAL1));

endmodule

저작자표시 비영리 변경금지

'자습시간 > Verilog' 카테고리의 다른 글

Verilog 복습 프로젝트(2) - 스탑워치 설계 (0)	2025.02.12
Verilog 복습 프로젝트(1) - 7세그먼트 제어 (0)	2025.02.11
UART(Universal Asynchronous Receiver/Transmitter) (1)	2024.07.30
UART 설계(3) - UART RX 설계 / 최종 설계 완료 (0)	2024.07.29

현재글Verilog 복습 프로젝트 - 스탑워치 / 계산기 / 타이머 / Pmod OLED
